FULL INVERTER
STEPLESS TWN-ROTARY
INVERTER COMPRESSOR
R32 GAS
SMART WIFI CONTROL

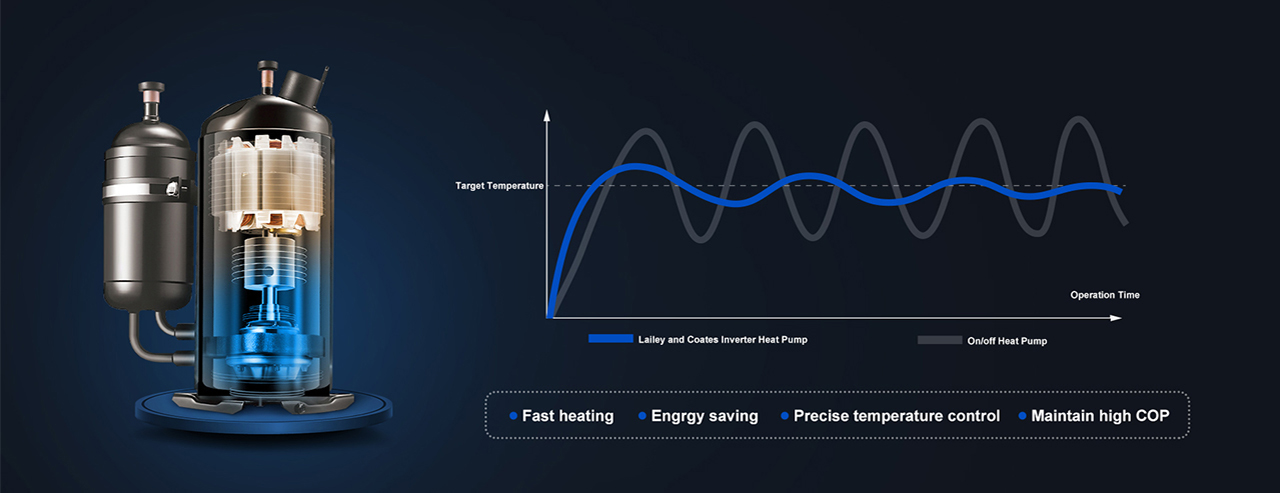

MATURE FULL INVERTER TECHNOLOGY
The synergistic integration of an advanced compressor with precision inverter control constitutes the system's core innovation, delivering superior energy efficiency ratings that translate to measurable reductions in homeowners' operational expenses.
Ultra-Efficient Heat Pump Operation

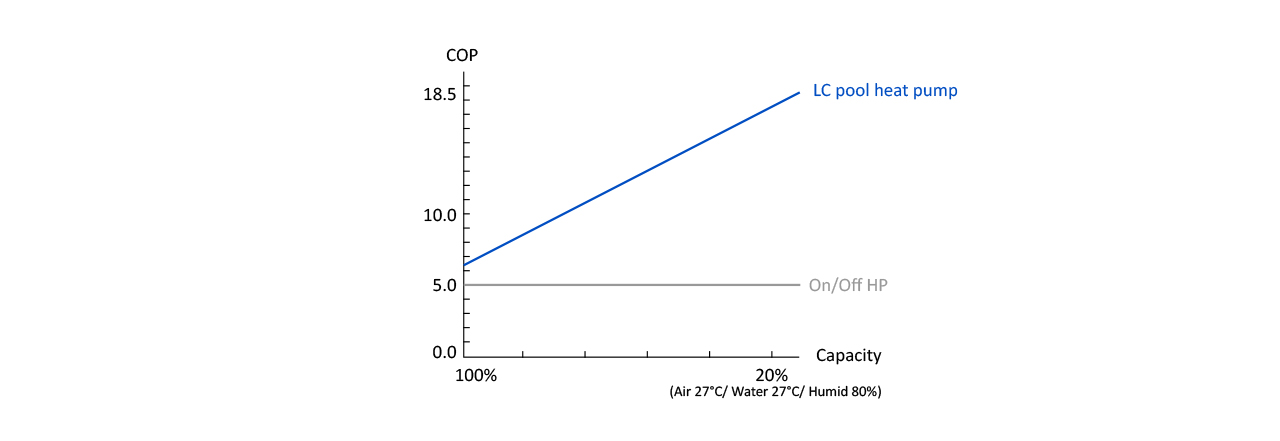

R32 full inverter pool heat pump can reach a COP as high as 18.5 at Air 27°C/ Water 27°C/ Humid 80%.
APP CONTROL

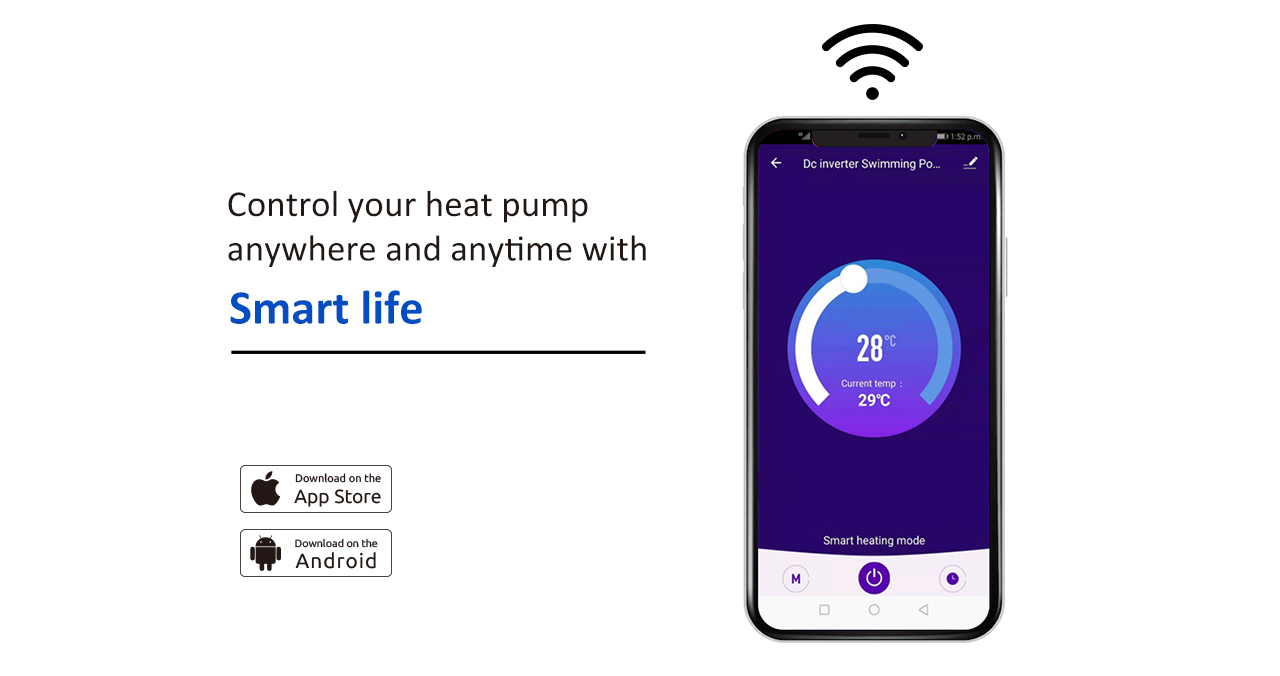

Control your pool's temperature from anywhere – whether at home via Wi-Fi or on-the-go through cellular networks. The intuitive mobile app (iOS/Android) lets you schedule heating cycles, monitor energy usage, and receive maintenance alerts with fingertip precision.

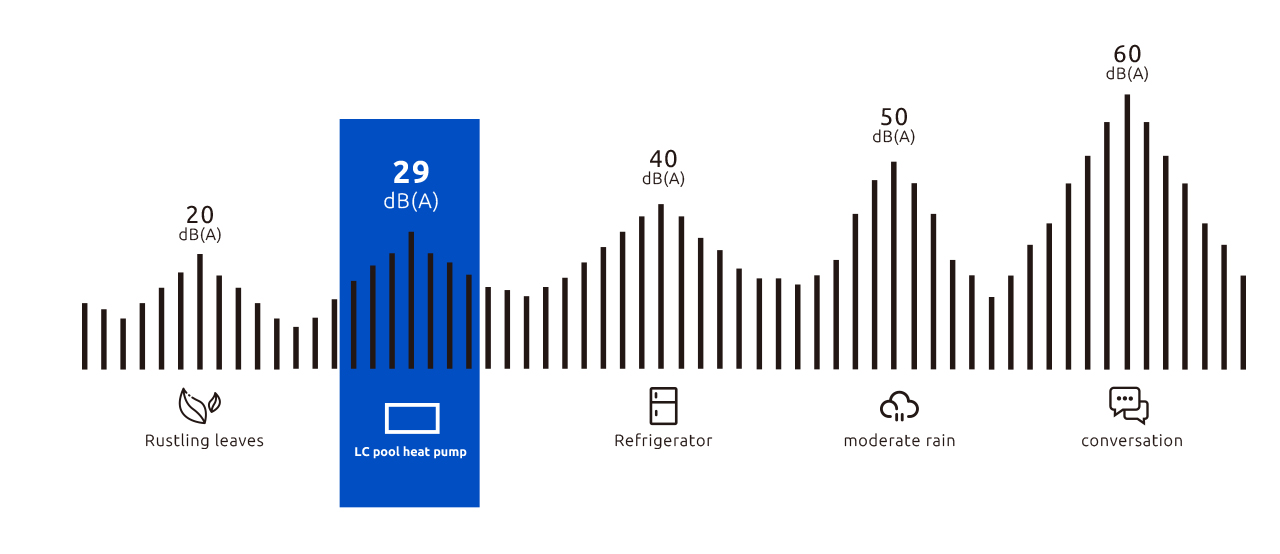

Experience Whisper-Quiet Operation

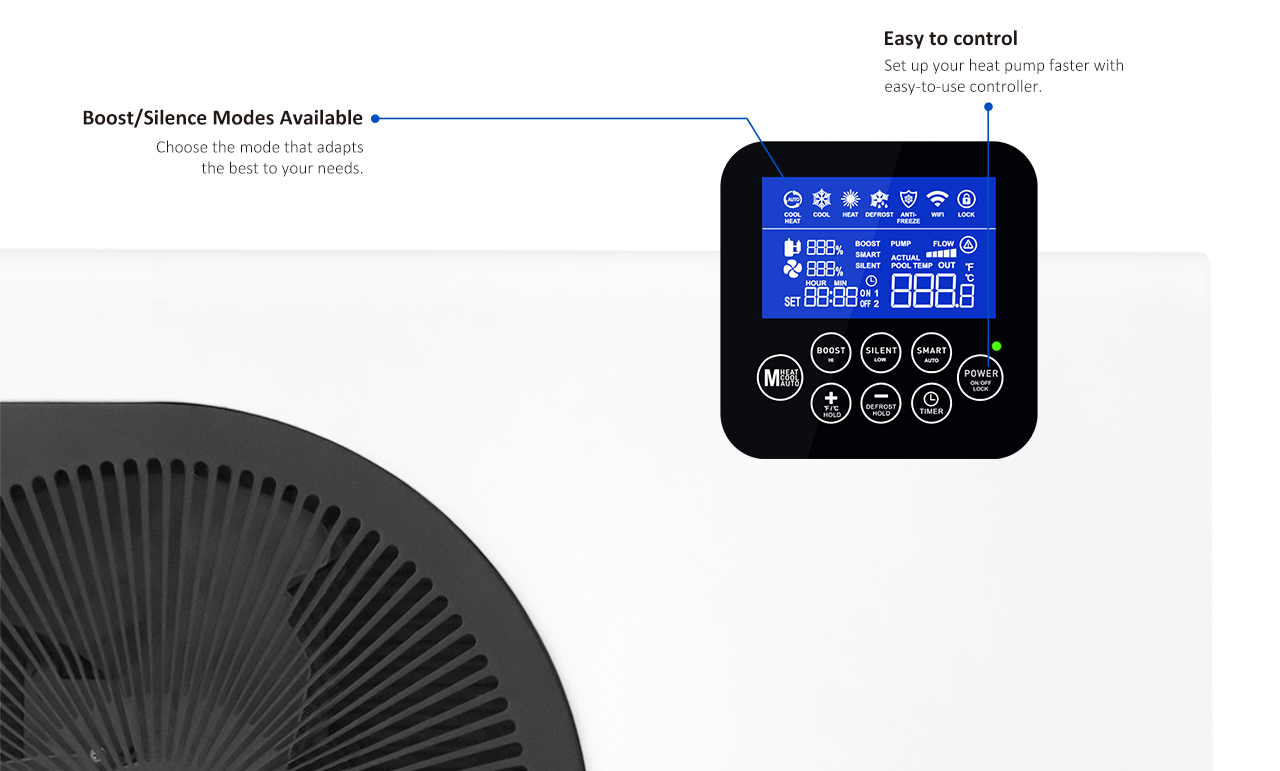

SMART TOUCH CONTROLLER
ENERGY-SACING & eNVIRONMENTAL-FRIENDLY
R32 Gas-Low GWP
Compared to the refrigerantswidely used today, such as R410A, R32 has a global warming potential that is two-third lower and it is remarkable for its low environmental imact, which speed up its popularity in the industry.
Energy Saving Application
LC applies the latest technology in heat pump field to achieve the trile energy saving effect on unit. application and behavior.

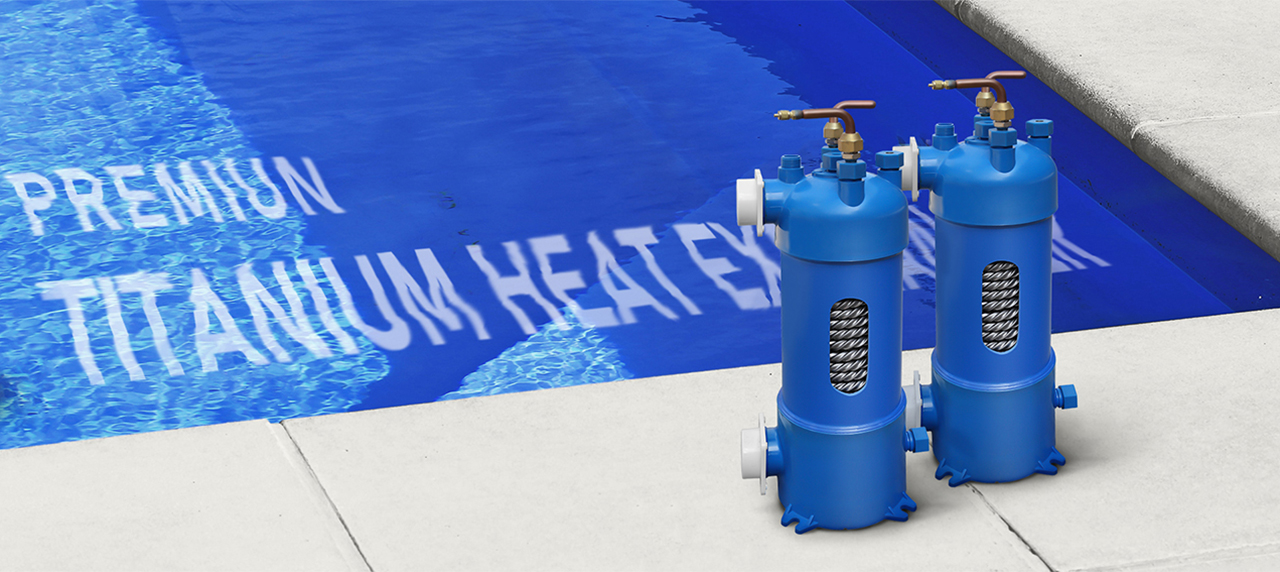

PREMIUM TITANIUM HEAT EXCHANGER
Titanium has the super strong corrosion resistant ability. Our titanium heat exchanger use seamless pure titanium tube as heat conductor, can ensure the titanium heat exchanger can be used for a long time, without any cost in the after-sale services. Due to its good properties, the titanium heat exchanger widely used in: Swimming pool equipment, Aquarium chiller, Marine refrigerant system, Solar energy heater, Aquaculture, Pharmacy, Food industry, Electroplating industry and some heat recovery from the waste water or exhaust gas. Main material and property: Molded cups titanium heat exchanger.
The titanium tube heat exchanger in PVC shell is reliable for pool heating system, good prevent the corrosion of chlorine in the swimming pool.
Model | LCSP-BP50RC | LCSP-BP70RC | LCSP-BP90RC | LCSP-BP120RC | LCSP-BP180RC | |
Air27℃/Water27℃ Humid.80% | Capacity(kW) | 9.03 | 12.02 | 15.25 | 19.21 | 27.28 |
COP range | 6.30~17.5 | 6.55~18.2 | 7.32~18.5 | 6.53~18.2 | 6.2~15 | |
Air15℃/Water 26℃ Humid.70% | Capacity(kW) | 5.94 | 7.54 | 10.85 | 13.61 | 19.71 |
COP range | 5.1~8.2 | 5.17~8.2 | 5.2~8.5 | 5.01~8.1 | 4.61~8.0 | |
Working ambienttemperature | ℃ | -10~43 | ||||
Powersupply | 220V/1Ph | |||||
Maximum imput current | A | 6.8 | 9.1 | 11.5 | 14.48 | 25.50 |
Compressor type | Inverter | |||||
Wifi connectivity | Yes | |||||
Fan | DCinverter fan | |||||
Sound pressureat 10m | dB(A) | <29 | <29 | <29 | <30 | <30 |
Unit net dimensions(L*W*H) | mm | 826*379*552 | 826*379*552 | 933*401*657 | 1125*470*707 | 1125*470*707 |
Net weight | kg | 35 | 37 | 47 | 61 | 66 |
