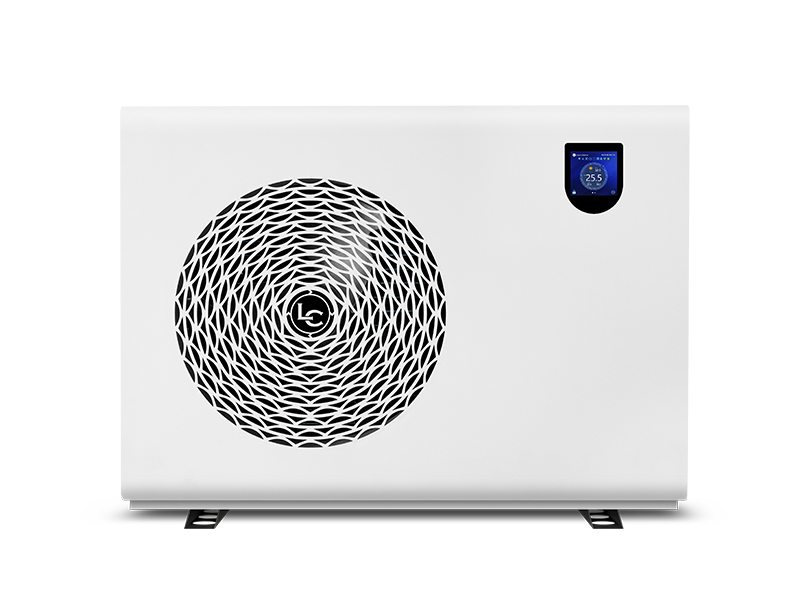

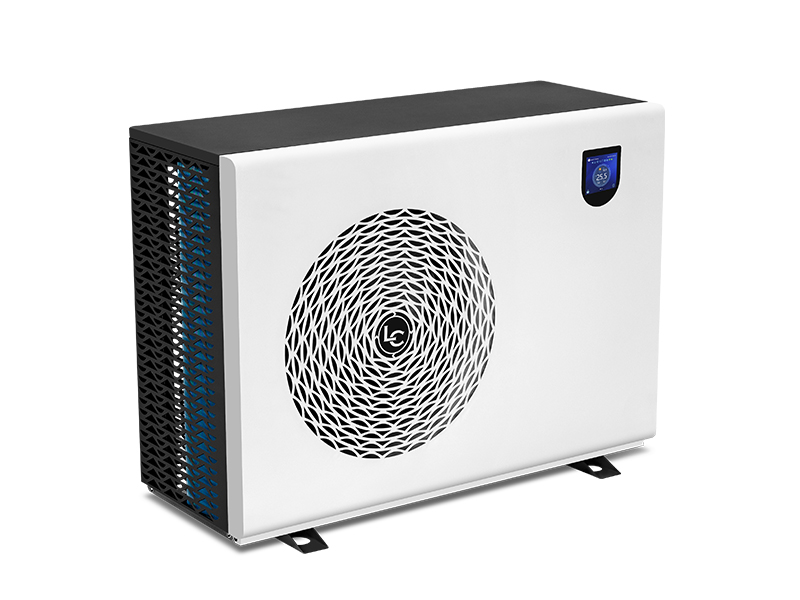

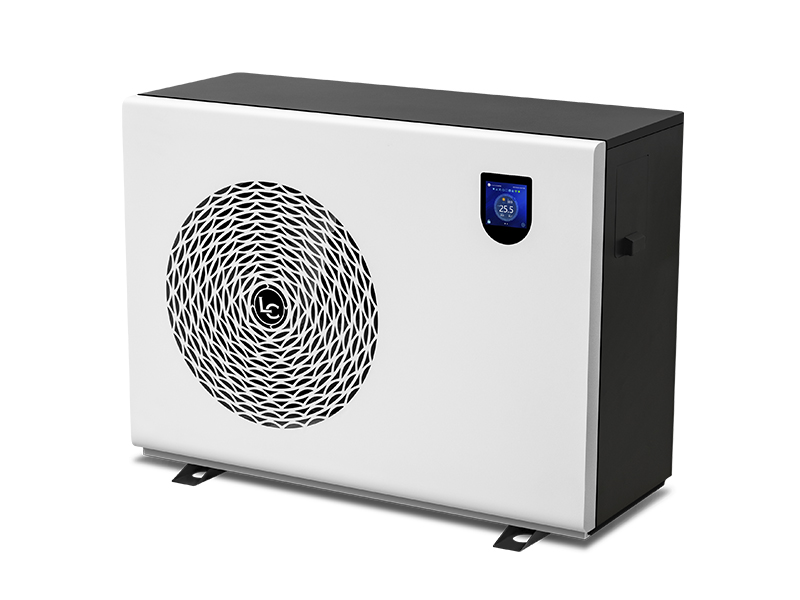

DC Inverter Pool Heat Pump

• Advanced inverter technology.

• Achieve a higher COP and maintain a comfortable pool temperature.

• Use DC fan: quieter and lower running cost.

• Use low GWP R32 refrigerant.

• Multiple mode selection to suit different applications: Boost, Smart, Silent.

• Unique innovative design with noise-absorbing structure and components.

• Spiral threaded anti-corrosive titanium heat exchanger increases the heat transfer area for improved efficiency.

• Microprocessor controlled with digital display for " Touch & Go " : No human attendance required.

• Thick galvanized and superior static coating cabinet or anti-UV ABS plastics providing stronger corrosion resistance.

• Comprehensive self-protections: safe to use.

• Self-diagnosis: displaying error code on the control panel.

• PIug and play installation and operation.

• Remote control with WIFI APP.

• Patented design.

Inquire Now

Next Products

PRODUCT DETAILS
PRODUCT PARAMETERS

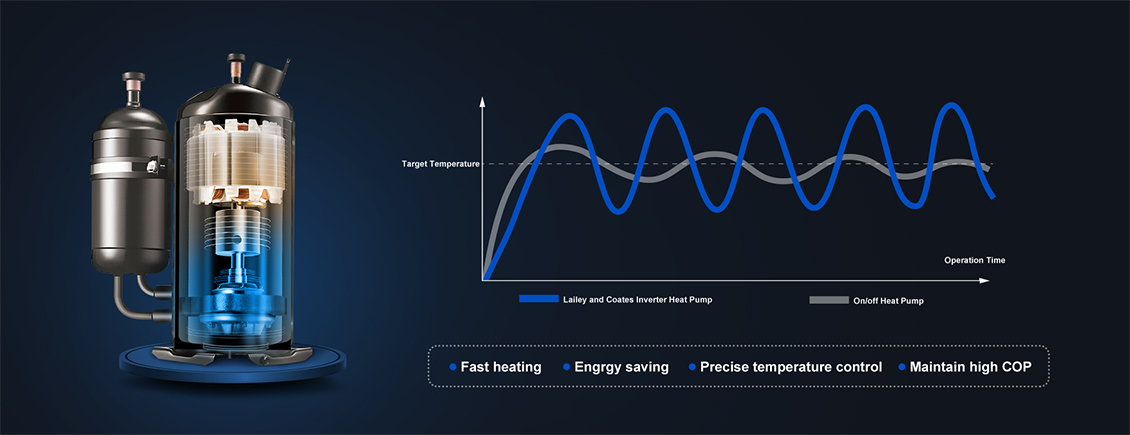

MATURE FULL INVERTER TECHNOLOGY

The synergy of advanced compressor and inverter technology is key to making this unit a top performer. This combination significantly boosts energy efficiency and delivers greater cost savings to homeowners.

DC Inverter Pool Heat Pump

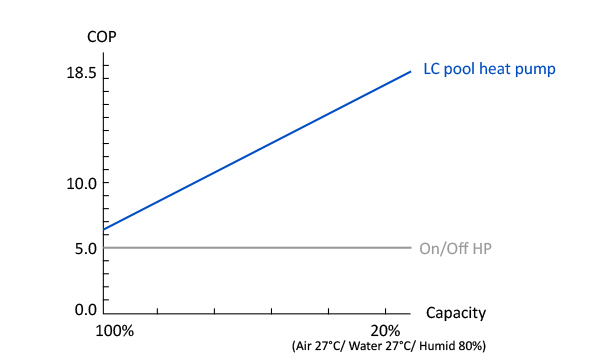

HIGH EFFICIENCY OF COP 18.5

R32 full inverter pool heat pump can reach a COP as high as 18.5 at Air 27°C/ Water 27°C/ Humid 80%.

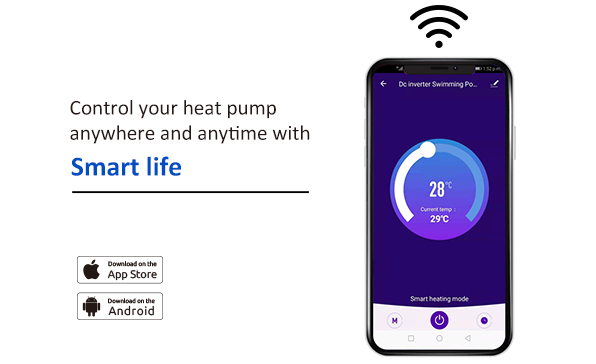

APP CONTROL

With a Wi-Fi and 4G/5G connection, you can take full control of your swimming pool heat pump on your smartphone via an app. The app can be found in the App Stores.

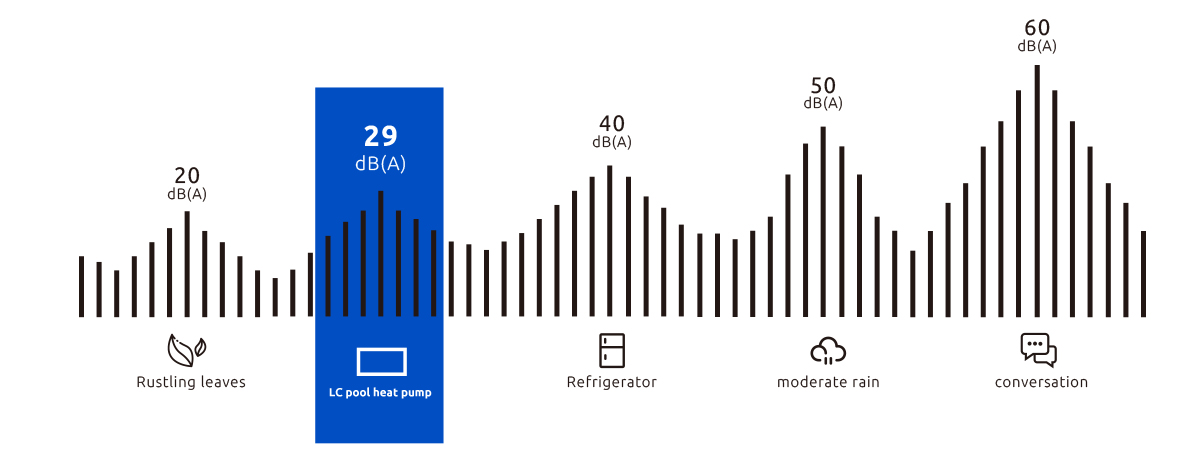

LOW NOISE RUNNING

A fully enclosed cabinet is specially designed for the compressor so that the running noise can be kept inside and the noise of the whole unit can maintain very low.The average sound level is 29dB(A) at 1. meter.

DC Inverter Pool Heat Pump

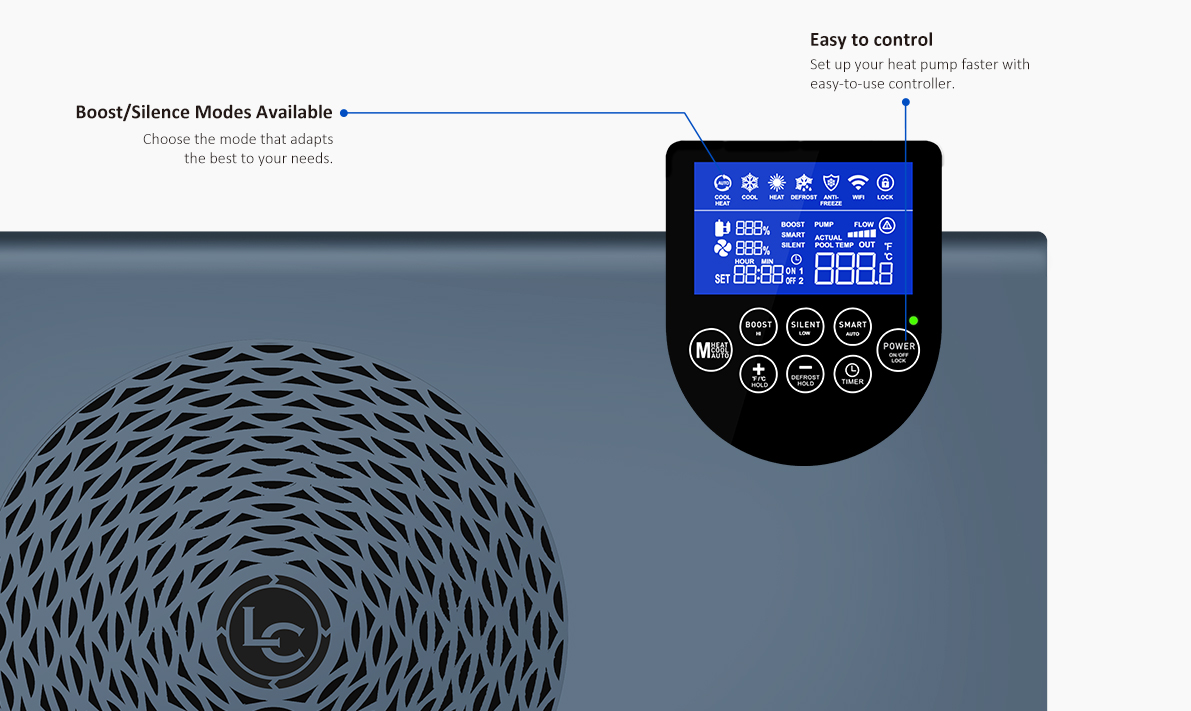

SMART TOUCH CONTROLLER

DC Inverter Pool Heat Pump

ENVIRONMENTAL-FRIENDLY

Compared to the refrigerantswidely used today, such as R410A, R32 has a global warming potential that is two-third lower and it is remarkable for its low environmental imact, which speed up its popularity in the industry.

DC Inverter Pool Heat Pump

Model		LCSP-BP50RC	LCSP-BP70RC	LCSP-BP90RC	LCSP-BP120RC	LCSP-BP180RC
Air27℃/Water27℃ Humid.80%	Capacity(kW)	9.03	12.02	15.25	19.21	27.28
Air27℃/Water27℃ Humid.80%	COP range	6.30~17.5	6.55~18.2	7.32~18.5	6.53~18.2	6.2~15
Air15℃/Water 26℃ Humid.70%	Capacity(kW)	5.94	7.54	10.85	13.61	19.71
Air15℃/Water 26℃ Humid.70%	COP range	5.1~8.2	5.17~8.2	5.2~8.5	5.01~8.1	4.61~8.0
Working ambienttemperature	℃	-10~43
Power supply		220V/1Ph
Maximum imput current	A	6.8	9.1	11.5	14.48	25.50
Compressor type		Inverter
Wifi connectivity		Yes
Fan		DCinverter fan
Sound pressureat 10m	dB(A)	<29	<29	<29	<30	<30
Unit net dimensions(LWH)	mm	826379552	826379552	933401657	1125470707	1125470707
Net weight	kg	35	37	47	61	66
