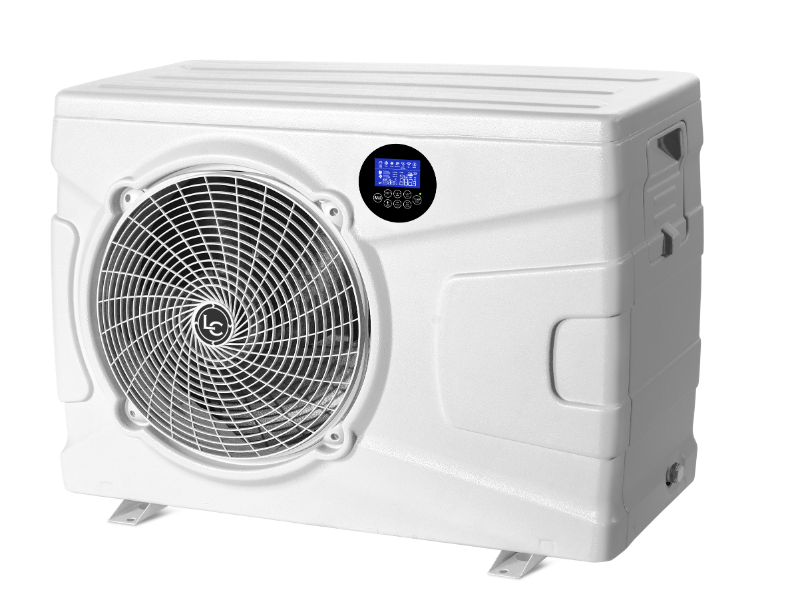

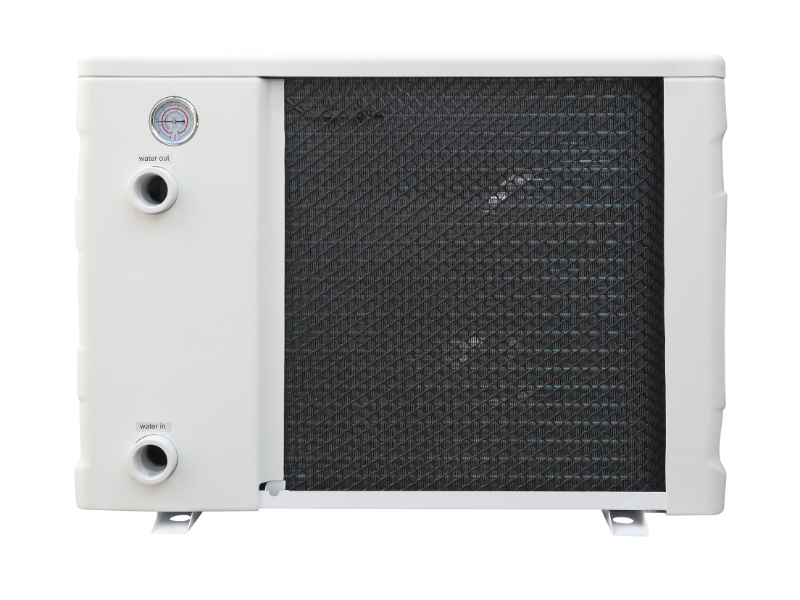

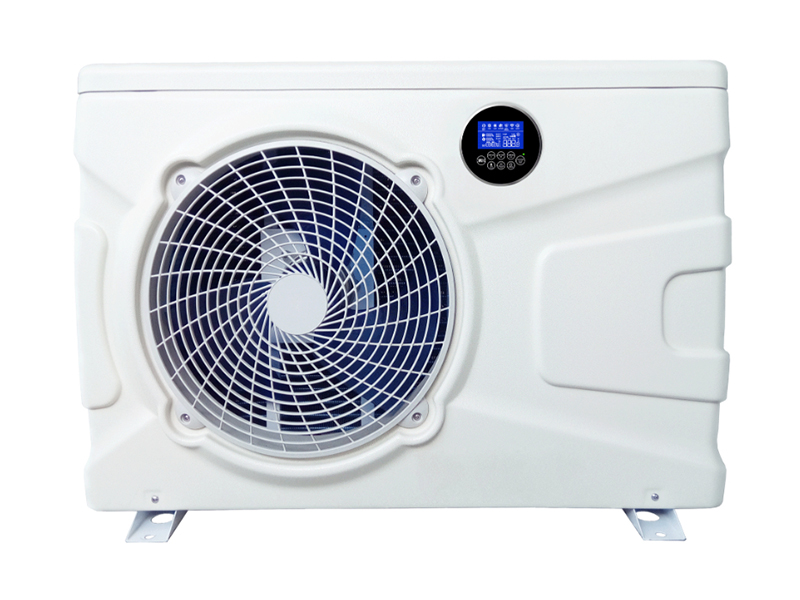

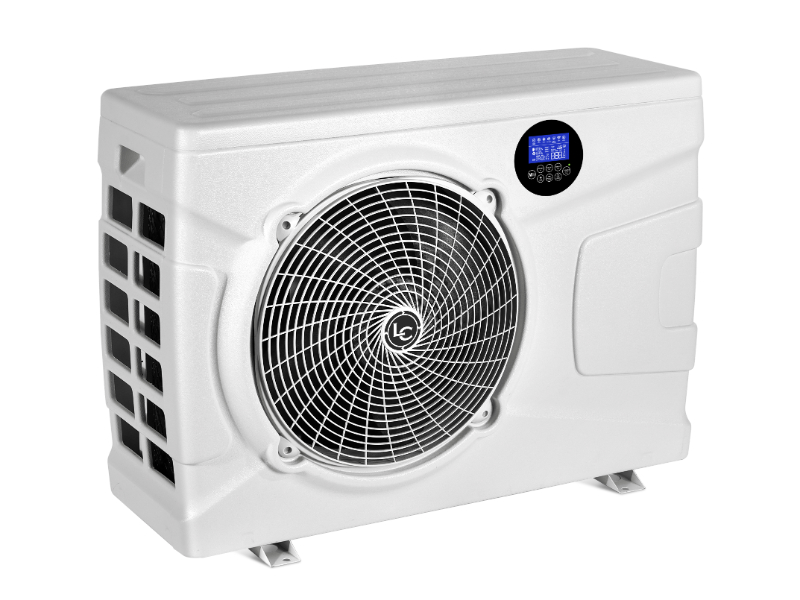

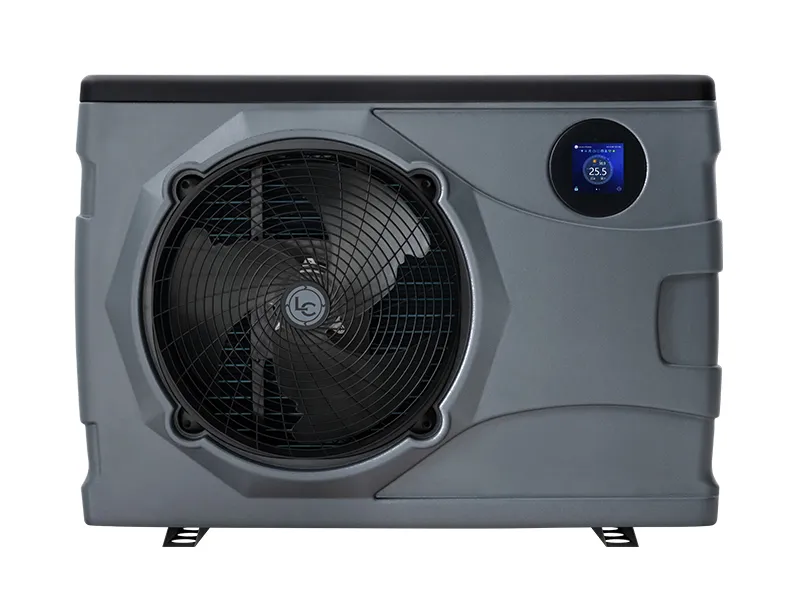

DC Inverter Pool Heat Pump

• Advanced inverter technology.

• Achieve a higher COP and maintain a comfortable pool temperature.

• Use DC fan: quieter and lower running cost.

• Use low GWP R32 refrigerant.

• Multiple mode selection to suit different applications: Boost, Smart, Silent.

• Unique innovative design with noise-absorbing structure and components.

• Spiral threaded anti-corrosive titanium heat exchanger increases the heat transfer area for improved efficiency.

• Microprocessor controlled with digital display for " Touch & Go " : No human attendance required.

• Thick galvanized and superior static coating cabinet or anti-UV ABS plastics providing stronger corrosion resistance.

• Comprehensive self-protections: safe to use.

• Self-diagnosis: displaying error code on the control panel.

• PIug and play installation and operation.

• Remote control with WIFI APP.

• Patented design.

Inquire Now

Next Products

PRODUCT DETAILS
PRODUCT PARAMETERS

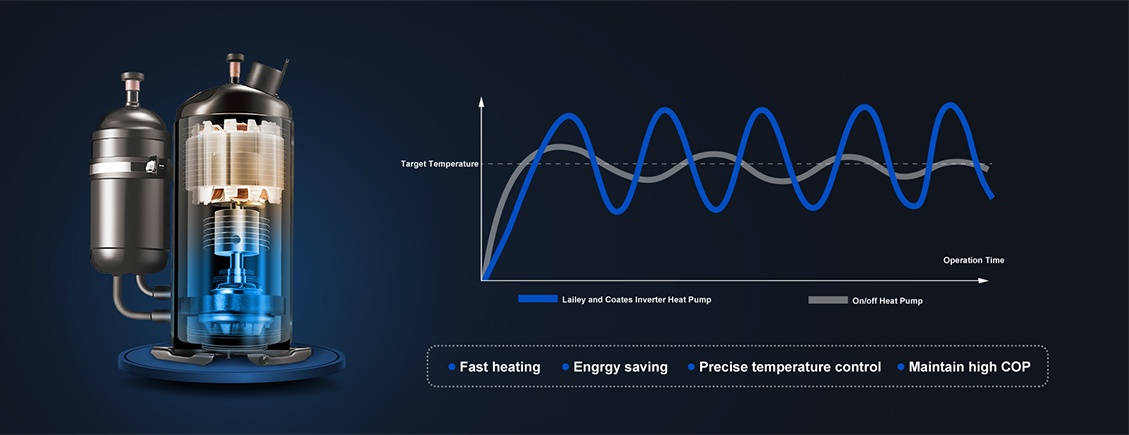

MATURE FULL INVERTER TECHNOLOGY

The application of an improved compressor and inverter technology synergies is a crucial element for the unit to be a top performer which can raise the energy efficiency and provide homeowners with greater cost-savings.

DC Inverter Pool Heat Pump

COP UP TO 18.5

With COP as high as 18.5, the DC inverter pool heat pumps can change the operating frequency of the rotary compressors and fan motors based on the heating needs, greatly speeding up heating time and thus providing more heat compared with traditional pool heat pumps.

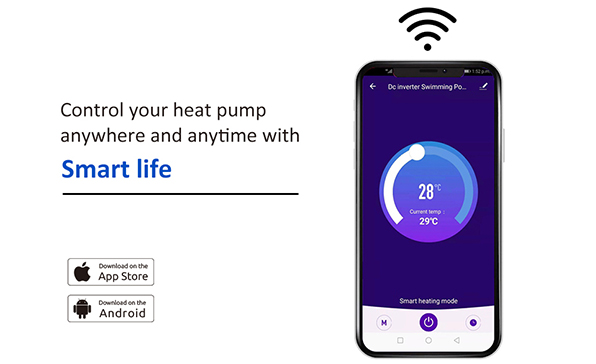

APP CONTROL

With a Wi-Fi and 4G/5G connection, you can take full control of your swimming pool heat pump on your smartphone via an app. The app can be found in the App Stores.

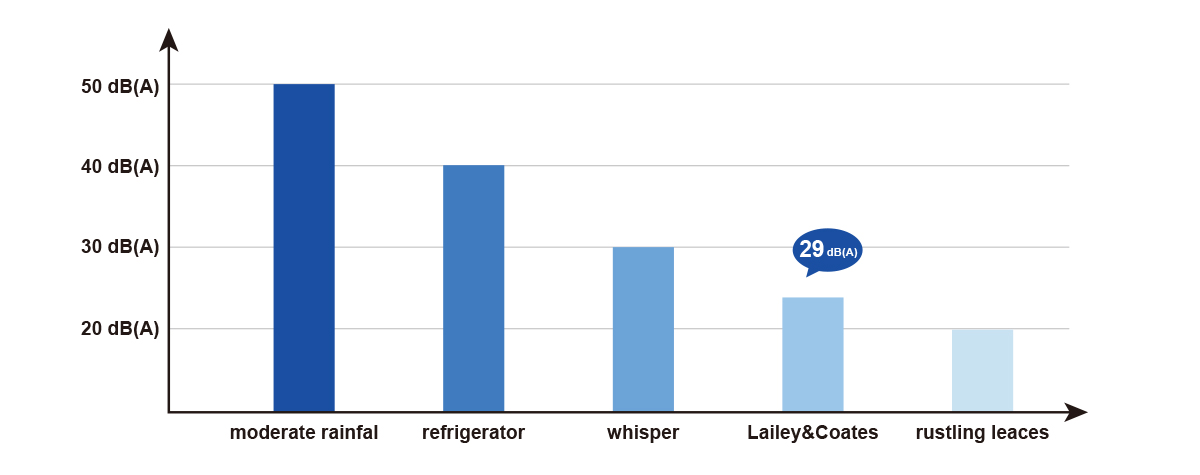

LOW NOISE

A fully enclosed cabinet is specially designed for the compressor so that the running noise can be kept inside and the noise of the whole unit can maintain very low.The average sound level is 29dB(A) at 1. meter.

DC Inverter Pool Heat Pump

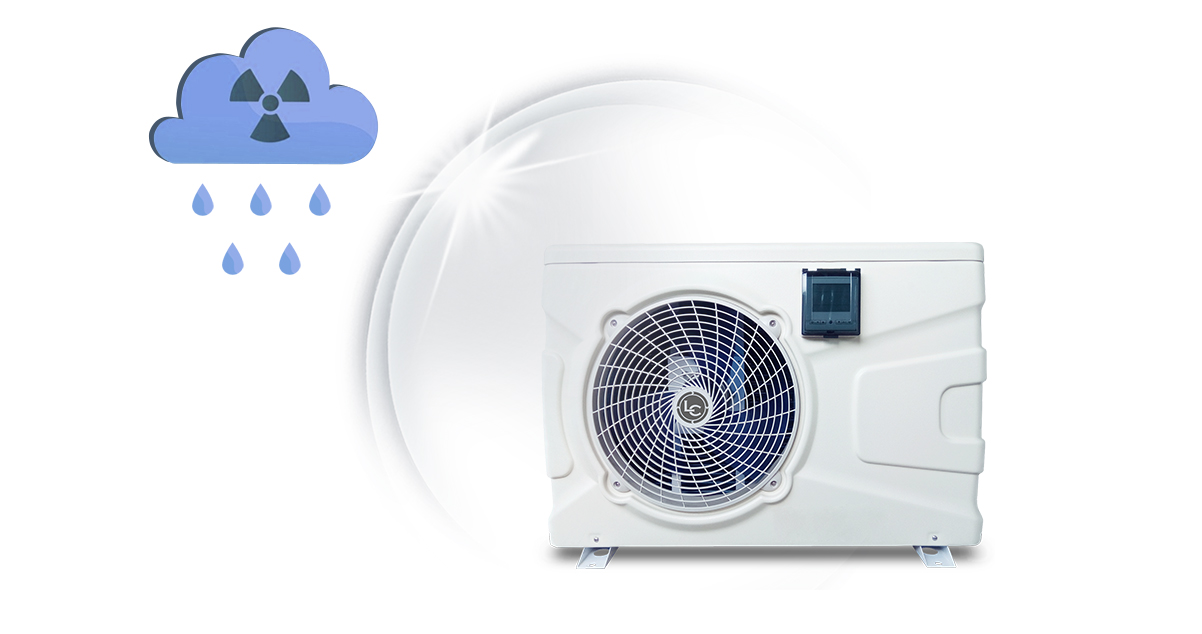

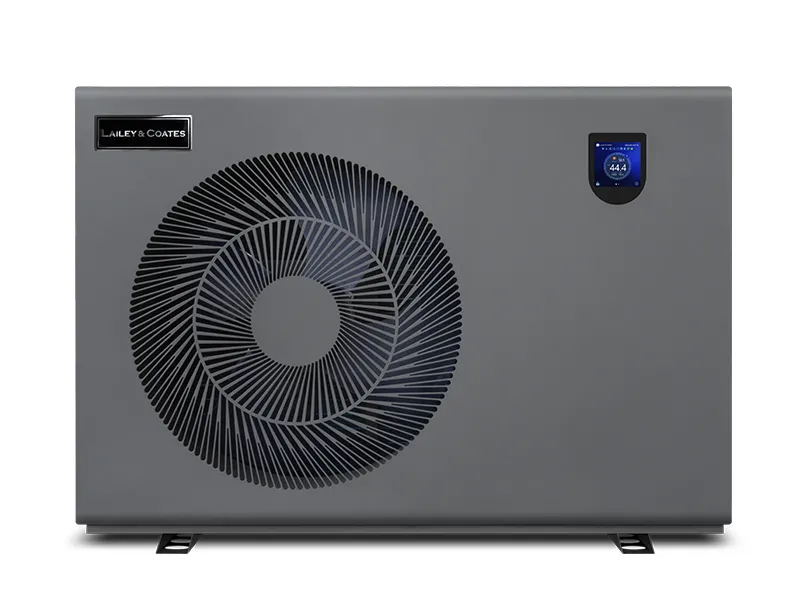

ABS PLASTIC CABINET

With the highlights of strong corrosion-resistant, the ABS cabinet is an ideal option for seaside citizens and area with moist, rainy climate.

DC Inverter Pool Heat Pump

Model		LCSPC-BP50R	LCSPC-BP70R	LCSPC-BP90R	LCSPC-BP120R	LCSPC-BP180R
Air27℃/Water27℃ Humid.80%	Capacity(kW)	9.03	12.02	15.25	19.21	27.28
Air27℃/Water27℃ Humid.80%	COPrange	6.30~17.5	6.55~18.2	7.32~185	6.53~18.2	6.20~15.0
Air 15℃/Water26℃ Humid.70%	Capacity(kW)	5.94	7.54	10.85	13.61	19.71
Air 15℃/Water26℃ Humid.70%	COPrange	5.1~8.2	5.17~8.2	5.2-8.5	5.01~8.1	4.61~8.0
Workingambienttemperature	℃	-10~43
Power supply		220V/1Ph
Rated inputpower	kW	0.12~1.35	0.16~1.86	0.2~2.24	0.23~2.87	0.75~5.22
Rated inputcument	A	0.55~6.14	0.73~8.5	0.92~102	1.05~13.05	3.45~23.7
Maximumimputcurent	A	6.8	9.1	11.5	14.48	25.50
Refrigerant		R32
Compressormodel		TOSHIBA	TOSHIBA	MITSUBISHI	MITSUBISHI	TOSHIBA
Compressor type		lnverter
Wifi connectivity		Yes
Airflow		Horizontal
Evaporator		Hydrophilicfin and coppertube
Condenser		Spiral threaded Titanium inPVC
Packag dimensions	LWHmm	850390688		960408793	1150480843
Unitnet dimensions	LWHmm	826379552		933401657	1125470707
Netweight	kg	35	37	47	61	66
SoundpressuredB(A)10m		<29	<29	<29	<30	<30
Waterproof level		IPX4
